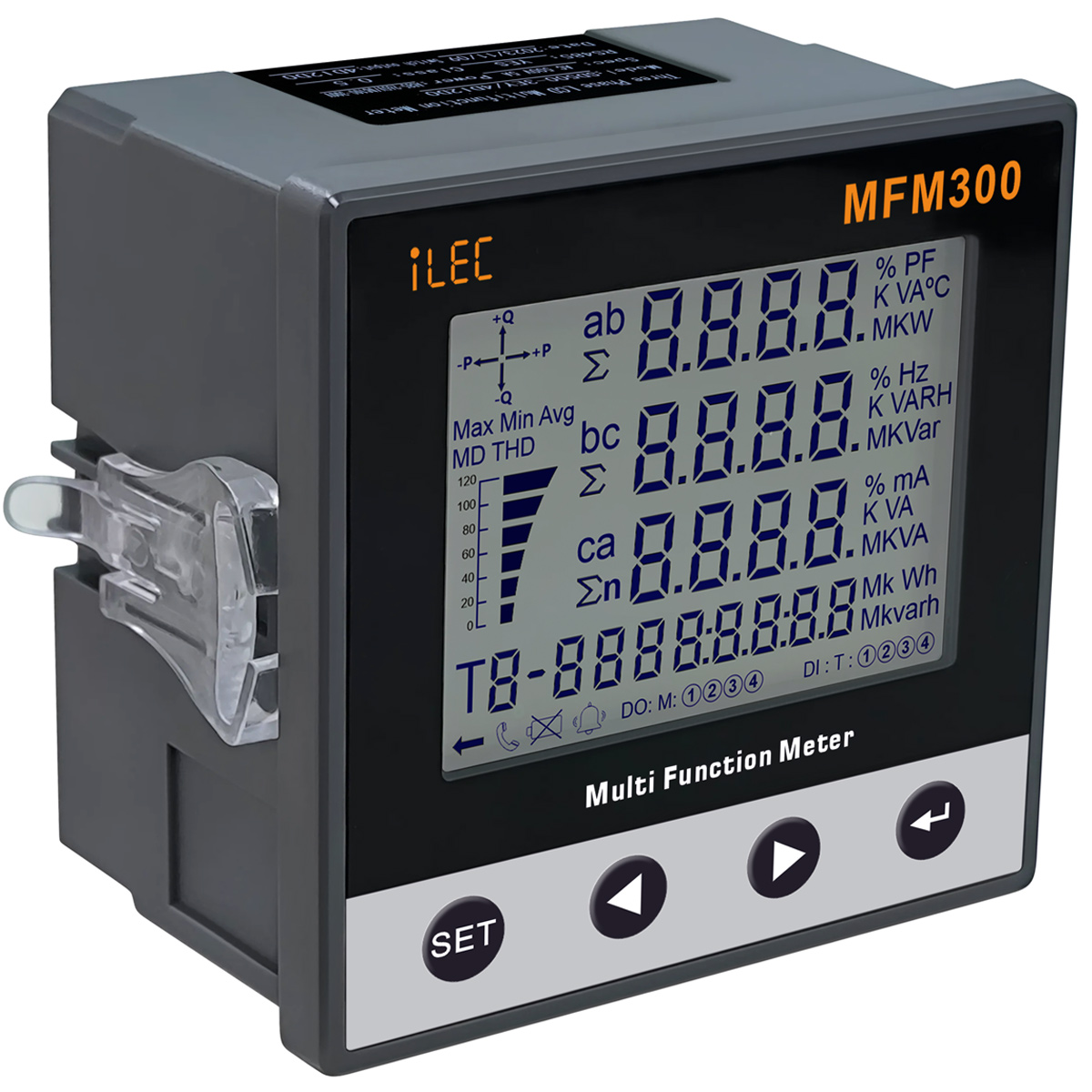

MULTIFUNCTION POWER METER

Model MFM300

Description

  • Compact and modern design, panel-mounted installation, saving valuable switchboard space.
  • Measures a full range of electrical parameters including voltage, current, power, power factor (cosφ), frequency, and more.
  • Equipped with graphical displays for active power (P), reactive power (Q), and current loading (%).
  • Supports Modbus RTU communication for remote monitoring and integration with supervisory systems.
  • Stable operation, reliable performance, and cost-effective solution for electrical monitoring applications.

Standards & Origin:

  • Manufactured in accordance with applicable quality standards.
  • iLEC brand – Vietnam.

DISPLAY

  • Quadrant power direction
  • Load %: 0,20,40,60,80,100,120%
  • 3 Rows x 4 digits to show electrical parameters
  • 1 signal + 8 digits to show energy

MEASUREMENT FUNCTIONS

  • Three phase voltage
  • Three phase current
  • Three phase power (kW, kVar, KVA)
  • Three phase power factor, frequency
  • Import and Export Energy: kWh, kVarh
  • RS485 MODBUS-RTU communication

Specifications

Item Description / Parameter
Wiring Input Three-phase 4-wire / Three-phase 3-wire
